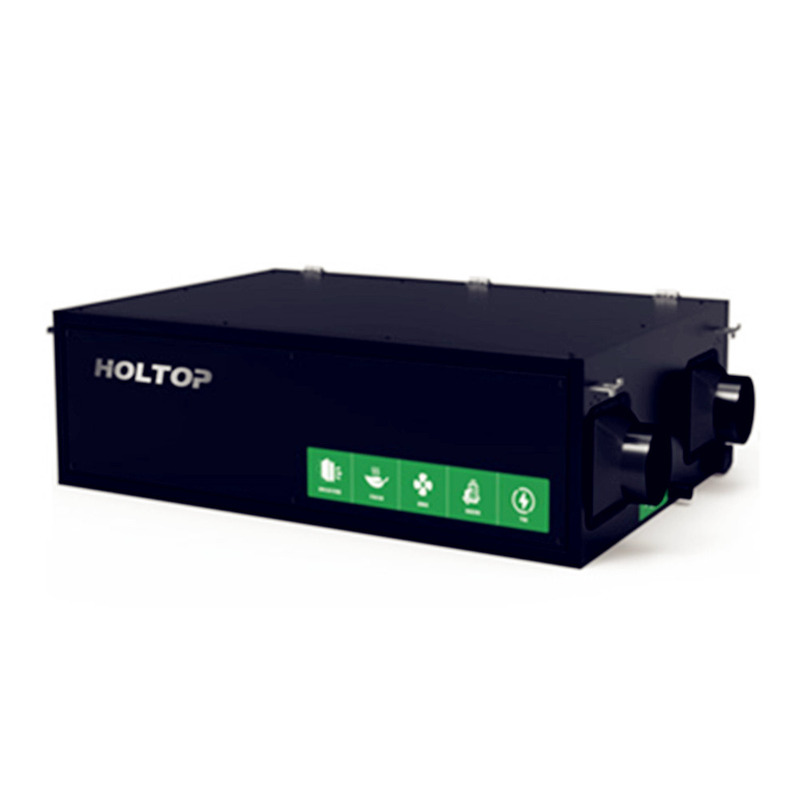

HOLTOP Commercial Hotel Air Purifier Smart Intelligent Hanging Dehumidifier

1 Unit
$2,000.00(>=1 Units)
HOLTOP Commercial Hotel Air Purifier Smart Intelligent Hanging Dehumidifier
特徴 ギャラリー 製品の説明 見積依頼
After-sales Service Provided: Free spare parts, Overseas Call Centers
Warranty: 1 Year
Application: Hotel, Commercial, Household
Power Source: Electric
Private Mold: No
Type: Refrigerative Dehumidifier, Double-way Heat Recovery Central Dehumidifiers
Function: Adjustable Humidistat, Auto Restart, Automatic Defrost, Automatic Humidistat Control, External Drain Connect, LED Display, Washable Air Filter
Capacity (pints / 24h): 136
Coverage Area (sq. ft.): 2152
Dimensions (L x W x H (Inches): 57.4*36.26*15.16
Power (W): 1550
Voltage (V): 220
Water Tank Capacity (l): 0
Dehumidifying Technology: COMPRESSOR
Model Number: SS1200DB1
Dehumidification capacity: 136 L/D
Fresh air flow: 1200 m3/h
Return air flow: 720 m3/h
Current: 7A
External pressure: 100 Pa
Input Power: 1.55KW
Weight: 104KG
Filters: Primary filter + High efficiency filter + Activated carbon
Purifification: Negative ion + UV Sterilizing lamp
証明: ce, UR
証明: ce, UR
Model Number: SS1200DB1
Supply Ability: 5000 Unit/Units per Month

HOLTOP commercial smart intelligent hanging air purifier dehumidifier

Product Description
Monitoring the air quality and humidity in your home is essential for your health and comfort, as well as protection for your home and belongings. Holtop central dehumidifier is designed to work with other HVAC systems to bring fresh and clean outdoor air to your home.


Main functions of the HOLTOP dehumidification system:

Precise Dehumidification

Equipped with imported compressor, high operating efficiency, energy saving, fast dehumidification.

Fresh Air Ventilation

The fresh air system can introduce outdoor fresh air into the room, reduce indoor carbon dioxide concentration and keep fresh air.

Purification Control

A comprehensive filtration system with initial-effect, high-efficiency HEPA and activated carbon filters will filter air pollutants such as dust, haze and PM2.5.

Multiple Sterilization

UV germicidal lamp with negative ion generator to effectively kill bacteria in the air.

More efficient, stable and reliable refrigeration and dehumidification system

Working Principle of Holtop Fresh Air Dehumidification Systems

The Holtop fresh air purification and dehumidification system adopts the principle of cooling dehumidification. By reducing the temperature of the air, the excess moisture in the air will be extracted, and then adjust the air to comfortable temperature and humidity by the reheating system.

High Efficient Heat Exchange System

Holtop heat exchange system uses a highly efficient hydrophilic aluminum foil honeycomb heat exchanger. Compared to other forms of heat exchangers, Holtop’s heat exchangers increase the vaporization area and contact surfaces to create higher vaporization efficiency and speed.
At the same time, the honeycomb fin structure increases the disturbance to the air, allowing the air and heat exchanger to exchange heat more thoroughly.

Imported World Famous Compressor

Holtop uses imported international brand compressors with low noise and high efficiency.

Excellent Cooling Components

Holtop’s high-efficiency cooling dehumidification system uses international famous brand cooling accessories including solenoid valves, filters, etc., to ensure the reliability, stability, safety and performance of the dehumidifier.

Dehumidifier + Ventilation+Purification One-Stop Solutions

Multiple Filters to Ensure Health

A large-area primary filter can effectively filtrate large particles such as hair and pollens. HEPA-grade high-efficiency filter can easily purify harmful particles such as PM2.5, and the purification efficiency is over 95%. The activated carbon and cold catalyst filter can doubleeffectively remove harmful substances such as formaldehyde, benzene and TVOC, as well as odor. The UV sterlizing function (optional) can quickly kill 99% of bacteria, molds and viral vi ruses in the air.

Make the Moist Air Clean and Dry

HOLTOP fresh air purification and dehumidification system can simultaneously solve the problems of indoor environment, such as lack of oxygen, humidity and various pollutants like PM2.5



Central Dehumidifier
Model DS200DB1 DS500DB1 DS800DB1 DS1200DB1
Dehumidification capacity L/D 20 50 80 136
Airflow m3/h 200 500 800 1200
External pressure Pa 150 160 100 100
Filters Primary filter + High efficiency filter + Activated carbon, cold catalyst filter Primary filter + High efficiency filter + Activated carbon
Purification UV Sterilizing lamp (optional) Negative ion+UV Sterilizing lamp
Input Power KW 0.38 0.92 1.43 1.5
Current A 1.7 4.2 6.5 6.8
Voltage 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz
Fresh air inlet size mm Ø98 Ø98 Ø144 Ø200
Supply air outlet size mm Ø98 Ø144 Ø194 Ø200
Return air inlet size mm Ø110 Ø150 Ø194 Ø200
Machine size mm 700*405*265 775*450*340 880*580*370 1063*650*375
Weight kg 25 40 50 56
Suitable room size m2 10~40 80~100 150~200 150~200
Double-way Heat Recovery Central Dehumidifiers
Model SS280DB1 SS600DB1 SS1200DB1
Dehumidification capacity L/D 26 76 136
Fresh air flow  m3/h 280 600 1200
Return air flow m3/h 170 360 720
External pressure Pa 50 80 100
Filters Filters Primary filter + High efficiency filter + Activated carbon
Purification Negative ion + UV Sterilizing lamp
Input Power KW 0.6 1.25 1.55
Current A 2.7 5.7 7
Voltage 220V/50Hz 220V/50Hz 220V/50Hz
Air inlet size mm Ø100 Ø100 Ø100
Machine size mm 1020*610*250 1154*640*320 1458*921*385
Weight kg 47 67 104
Suitable room size m2 10~40 80~100 150~200
Industrial Ceiling Duct Type Dehumidifiers
Model DS2200DA1 DS4300DA1 DS5300DA1
Dehumidification capacity L/D 168 360 480
Air flow  m3/h 2200 4300 5300
External pressure Pa 120 150 150
Filters Primary filter + High efficiency filter + Activated carbon, cold catalyst filter
Input Power KW 2.5 7.5 8.7
Current A 5 11 13
Voltage 380V/50Hz 380V/50Hz 380V/50Hz
Fresh air inlet size mm 625*580 1150*600 1150*600
Supply air outlet size mm 497*360 923*361 923*361
Machine size mm 1160*755*730 1347*1100*730 1347*1100*730
Company Information

Holtop Factory

Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments. It is dedicated to the research and technology development in the field of heat recovery ventilation and energy saving air handling equipments since 2002. The main products includes energy recovery ventilator ERV/HRV, air heat exchanger, air handling unit AHU, air purification system. Besides, Holtop professional project solution team can also offer customized hvac solutions for different industry.

Holtop headquarters is located at the foot of Beijing Baiwangshan Mountain, covering area of 30,000 square meters. The manufacturing base is in Beijing's Badaling Economic Development Zone, covering an area of 60 acres, with an annual production capacity of 200,000 units of air heat recovery equipments.
Holtop builds a sound certificate system of ISO9001, ISO14001 and OHSAS18001 as well as product certification systems. Moreover, it has a laboratory certified by national authority. As a well-known manufacturer in the field of heat recovery, Holtop has a strong R&D team and possesses dozens of national invention patents, and participated in the compilation work of several national standards, Holtop was also elected as Zhongguancun High-Tech Enterprise.


Holtop partner

Holtop cooperate with world famous brand or offer OEM /ODM service.

Holtop certificate

Holtop products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, CB, RCM, TUV, RoHS, FCC, ISO and other different approved tests like anti-flaming test, anti-mold test, energy saving product test. Etc.
